AEP-185 CORDLESS HYDRAULIC CRIMPING TOOLS
Product Details
6 tons cordless crimping tools
180° degrees swivel head.
Pistol type crimper
Flip-latch type
Cable lug hexagon crimping
Standard die set (total 6pcs)
10-16/ 25-35/ 50-70/ 95-120/
150/ 185-6mm2
(i.e. B1801-B1806/ R18 type)
AEP-185
6-185mm2
AWG10-350MCM crimping range
Tool dimension:
385(L)x290(W)x75(H)mm
Weight: 4kgs excludes battery

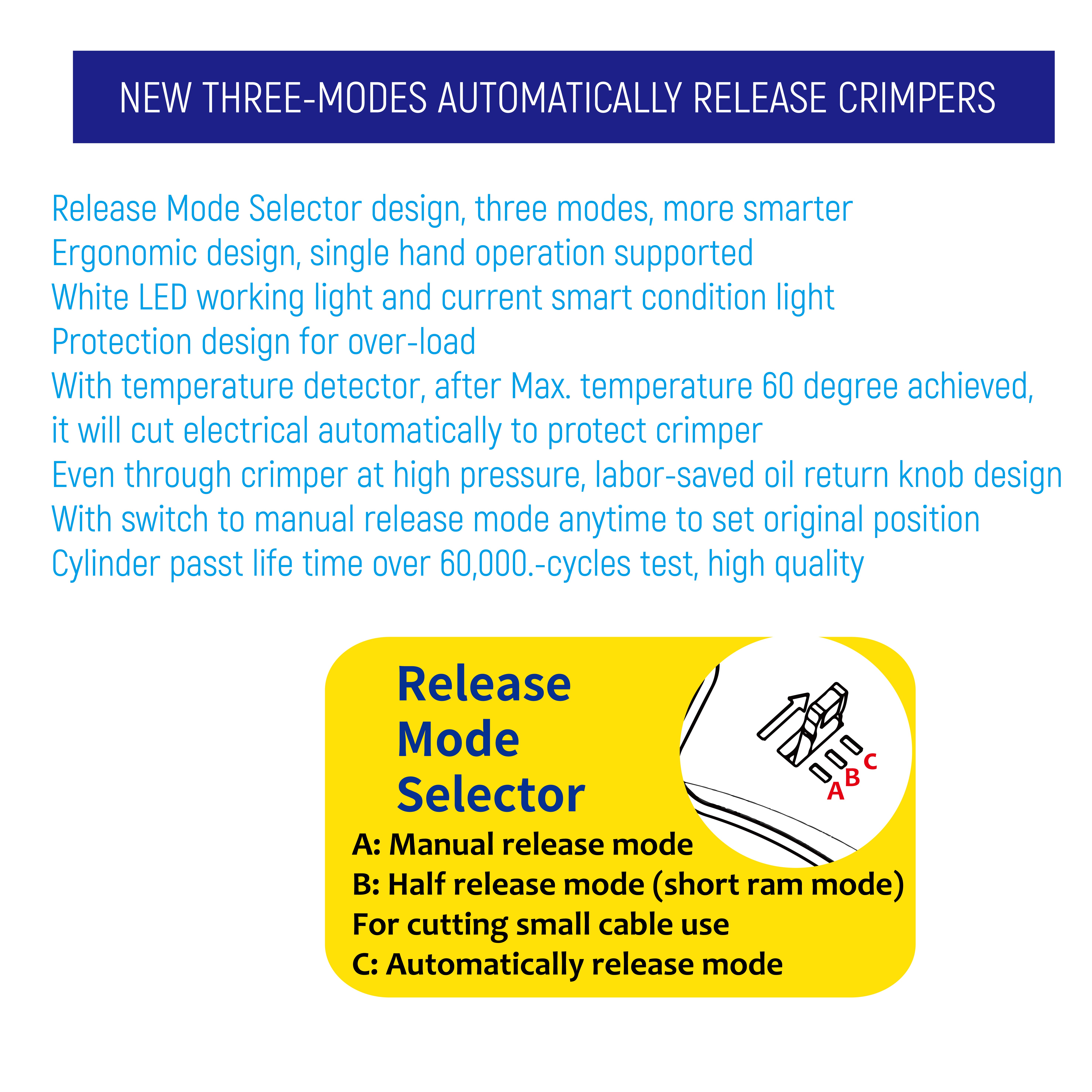

NEW THREE-MODES AUTOMATICALLY RELEASE CRIMPERS
Release Mode Selector design, three modes, more smarter
Ergonomic design, single hand operation supported
White LED working light and current smart condition light
Protection design for over-load
With temperature detector, after Max. temperature 60 degree achieved,
it will cut electrical automatically to protect crimper
Even through crimper at high pressure, labor-saved oil return knob design
With switch to manual release mode anytime to set original position
Cylinder passt life time over 60,000.-cycles test, high quality
With release mode selector
A: Manual release mode
B: Half release mode(short ram mode) For cutting small cable use
C: Automatically release mode
Release Mode Selector design, three modes, more smarter
Ergonomic design, single hand operation supported
White LED working light and current smart condition light
Protection design for over-load
With temperature detector, after Max. temperature 60 degree achieved,
it will cut electrical automatically to protect crimper
Even through crimper at high pressure, labor-saved oil return knob design
With switch to manual release mode anytime to set original position
Cylinder passt life time over 60,000.-cycles test, high quality
With release mode selector
A: Manual release mode
B: Half release mode(short ram mode) For cutting small cable use
C: Automatically release mode
Smart version USB-C CONNECTOR
Light advice system with buzz warning
LED Green: Well crimped and motor stopped
LED Orange: Battery without enough power
LED Red+buzz warning: Pressure or temperature is over
USB-connector and computer software
Smart PCB will record information:
Crimping times/ battery voltage/ Pressure
Temperature/Tool series code/Power source
Light advice system with buzz warning
LED Green: Well crimped and motor stopped
LED Orange: Battery without enough power
LED Red+buzz warning: Pressure or temperature is over
USB-connector and computer software
Smart PCB will record information:
Crimping times/ battery voltage/ Pressure
Temperature/Tool series code/Power source
| Model No. | Head rotation | Application | Standard dies | Output | Crimping range supported | Dimension | Weight | Remark |
|---|---|---|---|---|---|---|---|---|
| AEP-185 | 180° | Cable lug hexagon crimping | Standard die set (total 6pcs) 10-16/ 25-35/ 50-70/ 95-120/ 150/ 185-6mm2 (i.e. B1801-B1806/ R18 type) | 6 tons | 6-185mm2 AWG10-350MCM crimping range | 385(L)x290(W)x75(H)mm | 4kgs excludes battery | Flip-latch type, auto-release version |
