TP-900H REMOTE HYDRAULIC CRIMPING HEAD
Product Details
15 tons remote hydraulic crimping heads
360 degrees swivel head.
Remote type crimper.
Cable lug hexagon crimping
Standard dies set (12pcs)
35/50/70/95/120/150/185/240/300/400/500/630mm2
(i.e. B3035-B30400,B90500, B90630/R30 and R90 type)

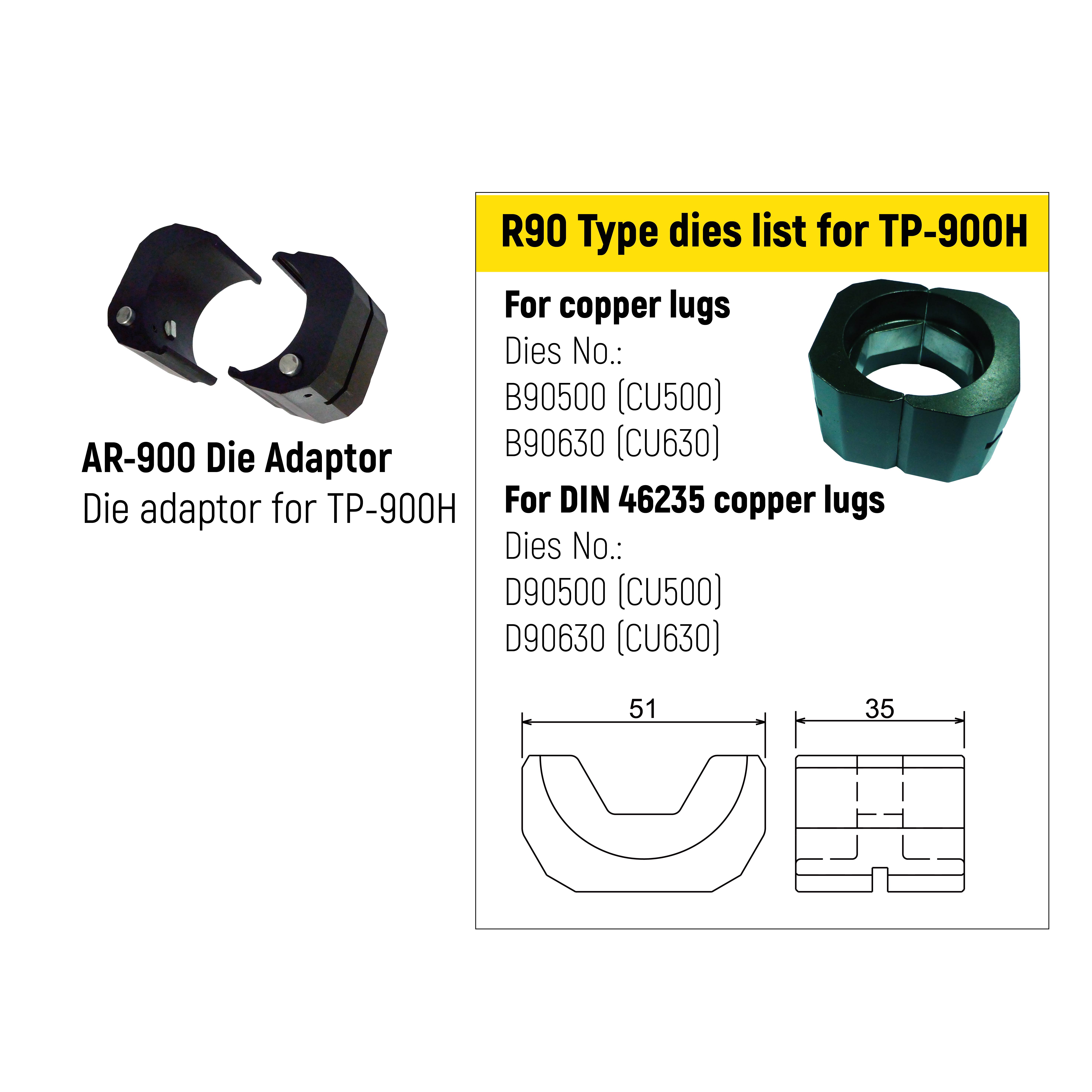

Dies below 400mm2 need to work with adaptor AR-900
TP-900H (Remote Type)
50mm C head jaw opening
15 tons output
Weight: 7.3kgs
Length: 370mm
15 tons remote hydraulic crimping heads
360 degrees swivel head.
Remote type crimper.
Cable lug hexagon crimping
Standard dies set (12pcs)
35/50/70/95/120/150/185/240/300/400/500/630mm2
(i.e. B3035-B30400,B90500, B90630/R30 and R90 type)
Dies below 400mm2 need to work with adaptor AR-900
360 degrees swivel head.
Remote type crimper.
Cable lug hexagon crimping
Standard dies set (12pcs)
35/50/70/95/120/150/185/240/300/400/500/630mm2
(i.e. B3035-B30400,B90500, B90630/R30 and R90 type)
Dies below 400mm2 need to work with adaptor AR-900
TP-900H (Remote Type)
50mm C head jaw opening
15 tons output
50mm C head jaw opening
15 tons output
| Model No. | Head rotation | Application | Standard dies | Output | Crimping range supported | C-Jaw Open | Length | Weight |
|---|---|---|---|---|---|---|---|---|
| TP-900H | 360° | Cable lug hexagon crimping | Standard dies set (12pcs) 35/50/70/95/120/150/185/240/300/400/500/630mm² (i.e. B3035-B30400,B90500, B90630/R30 and R90 type) Die | 15 tons | Max. 630mm² crimping range | 50mm | 370mm | 7.3kgs |
